Residential and Light Commercial

COYOTE Generators are quality, optimum cost power generators.
Designed to cater to diverse applications, from industrial to residential use, these generators combine efficiency, durability, and advanced engineering to ensure uninterrupted power supply.

Technical Specifications
| Feature | KL7 | KL11 | KL14.5 | KL20 | KL25 | KL30 |
|---|---|---|---|---|---|---|
| Engine | Kioti | Kioti | Kioti | Kioti | Kioti | Kioti |
| Model | 3C100 | 3L123 | 3A165 | 3B183LWS | 4A220LWS | 4B243TLWS |
| Emission rating | EPA Tier 4 Final, Euro Stage V | EPA Tier 4 Final, Euro Stage V | EPA Tier 4 Final, | EPA Tier 4I | EPA Tier 4I | EPA T3 |
| Voltage Option 1 | 240V Single Phase | 240V Single Phase | 240V Single Phase | 240V Single Phase | 240V Single Phase | 240V Single Phase |
| Voltage Option 2 | 208 V 3 Phase | 208 V 3 Phase | 208V 3 Phase | 208 V 3 Phase | 208 V 3 Phase | 208V 3 Phase |
| Standby Power (kWe) | 7kWe | 11kWe | 14.5kWe | 22 kWe | 25 kWe | 31 kWe |
| Prime Power (kWe) | 7kWe | 11kWe | 14.5kWe | 22 kWe | 25 kWe | 31 kWe |
| Weight | 873 lbs | 932 lbs | 1424 lbs | 1524 lbs | 1624 lbs | 1624 lbs |
| Dimensions (LxWxH) | 59" x 32" x 45" | 59" x 32" x 45" | 59" x 32" x 45" | 59" x 32" x 45" | 59" x 32" x 45" | 59" x 32" x 45" |

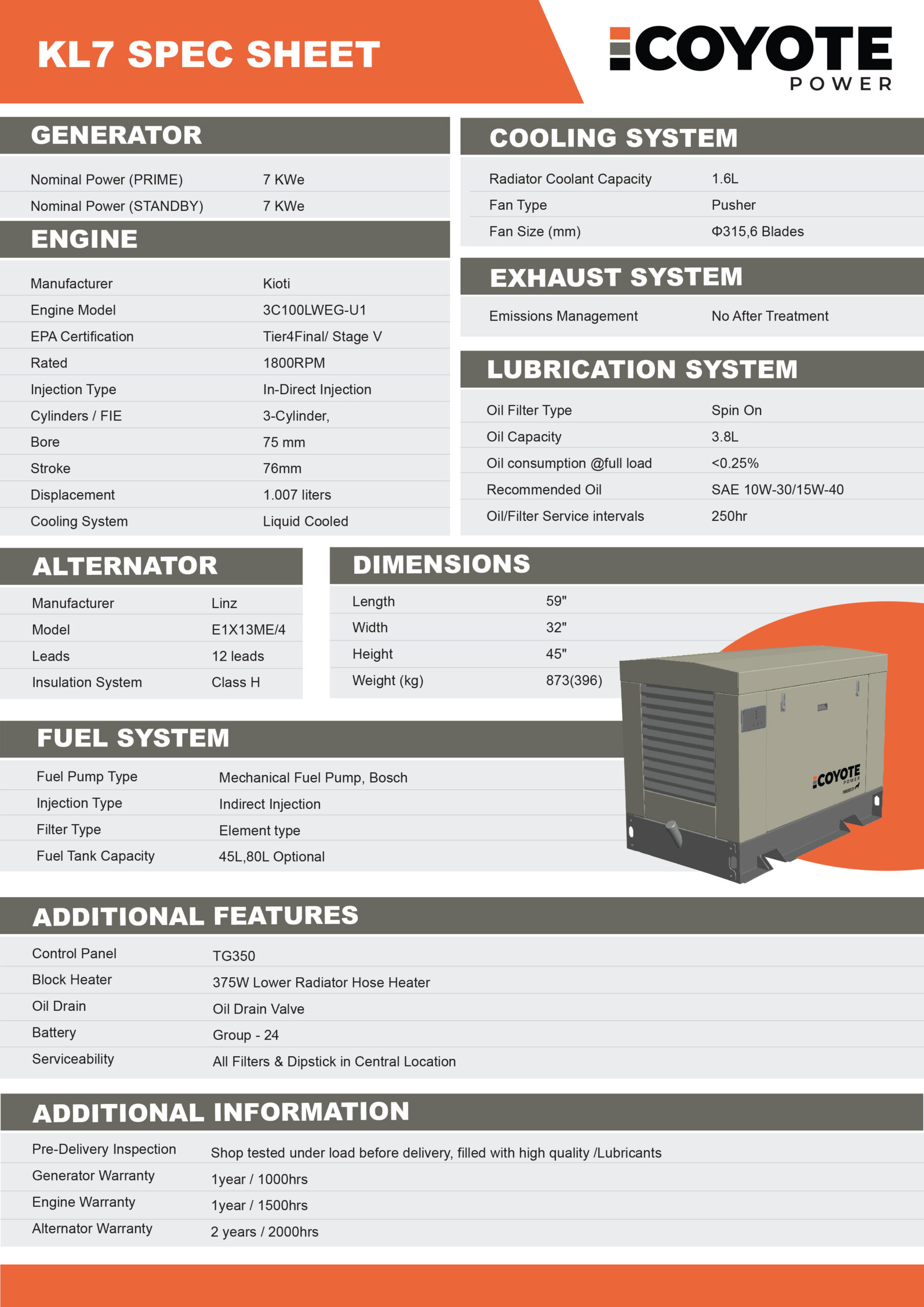

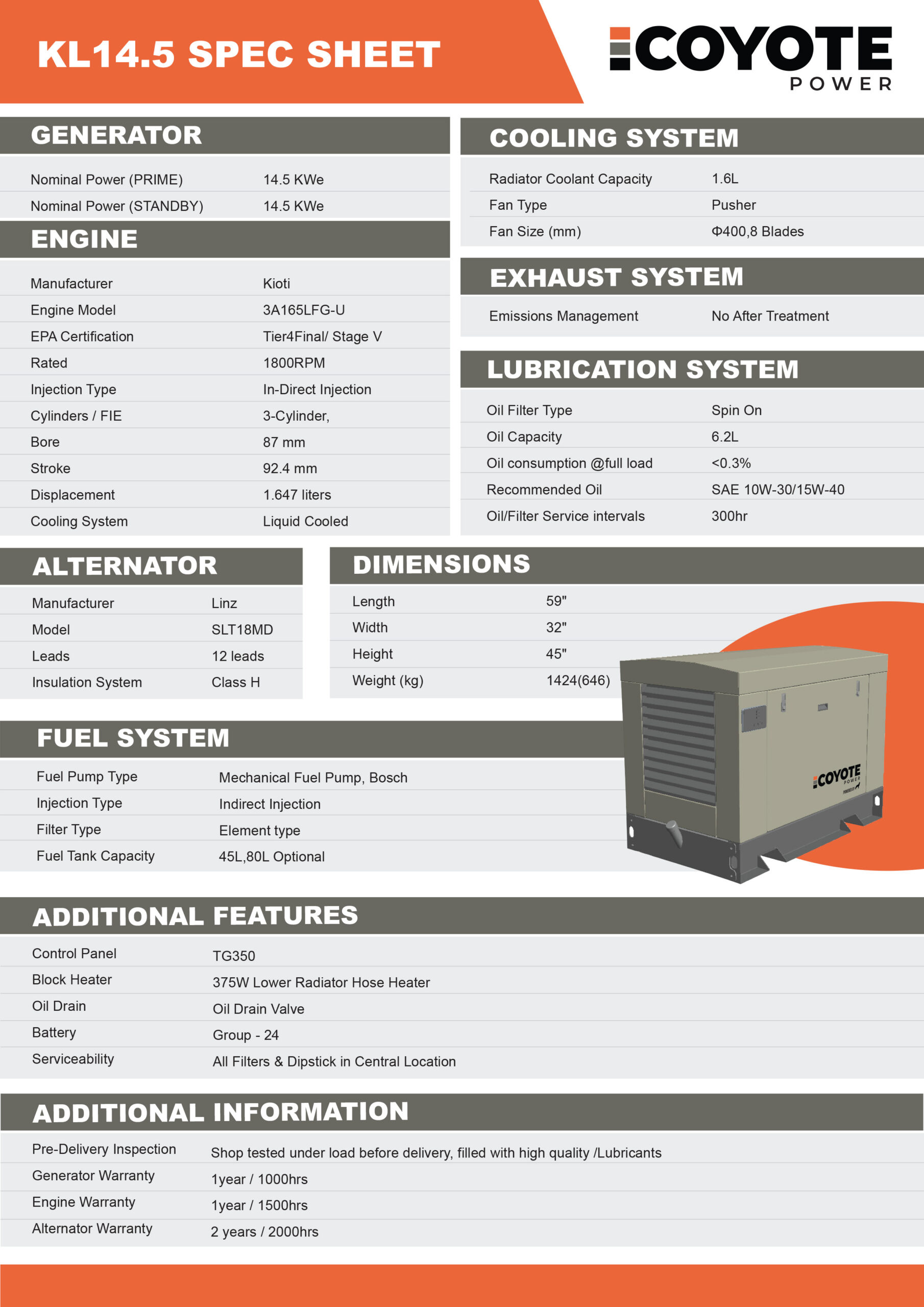

| Spec Sheet | DOWNLOAD HERE | DOWNLOAD HERE | DOWNLOAD HERE | DOWNLOAD HERE | DOWNLOAD HERE | DOWNLOAD HERE |

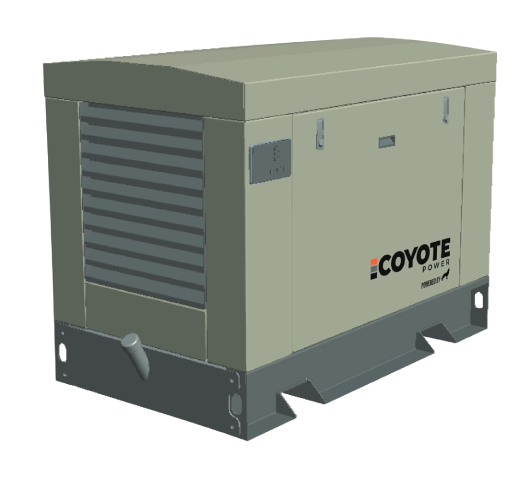

COYOTE Generator Range
Discover COYOTE’s versatile lineup of generators — from the KL7 to the KL30 — each designed for reliable performance across diverse applications. Engineered for efficiency and a low cost of operation, our models deliver dependable power when and where you need it most.
Low Cost of Operation
COYOTE generators are built for efficiency and reliability. Featuring mechanical engines that perform in extreme heat or cold, they’re less sensitive to fuel quality and designed for lower maintenance costs, ensuring dependable power with minimal operating expenses.
Easy Maintenance
Designed for convenience, COYOTE generators feature centralized service access, an oil drain extension, and an easy-access fuel tank — making routine maintenance faster, simpler, and more efficient.
High
Durability
Built to last, COYOTE generators feature a 14-gauge aluminium enclosure paired with a Kioti engine and Linz alternator, ensuring long-term reliability, strength, and superior performance in demanding conditions.
Emissions Compliance
COYOTE generators meet strict global standards — the KL7, KL11, and KL14.5 models are EPA Tier 4 Final / EU Stage V certified, while the KL20, KL25, and KL30 are Tier 4 Interim certified. Designed with no aftertreatment requirements, they operate without DEF or DPF, ensuring simpler, cleaner performance.
Smart
Design
COYOTE generators are engineered for flexibility and convenience. Easily upgrade from single-phase 240V to three-phase 208V with a simple wiring switchover, expand fuel capacity from 45L to 80L within the same base frame, and connect an external tank via the built-in valve. Forklift lift holes ensure effortless transport and handling.
Safety Features
COYOTE generators are designed with security in mind, featuring a lockable enclosure and controller door along with a lockable fuel cap to ensure safe and protected operation in any environment.
